Gusseted Reel

PRODUCT OVERVIEW ⌄

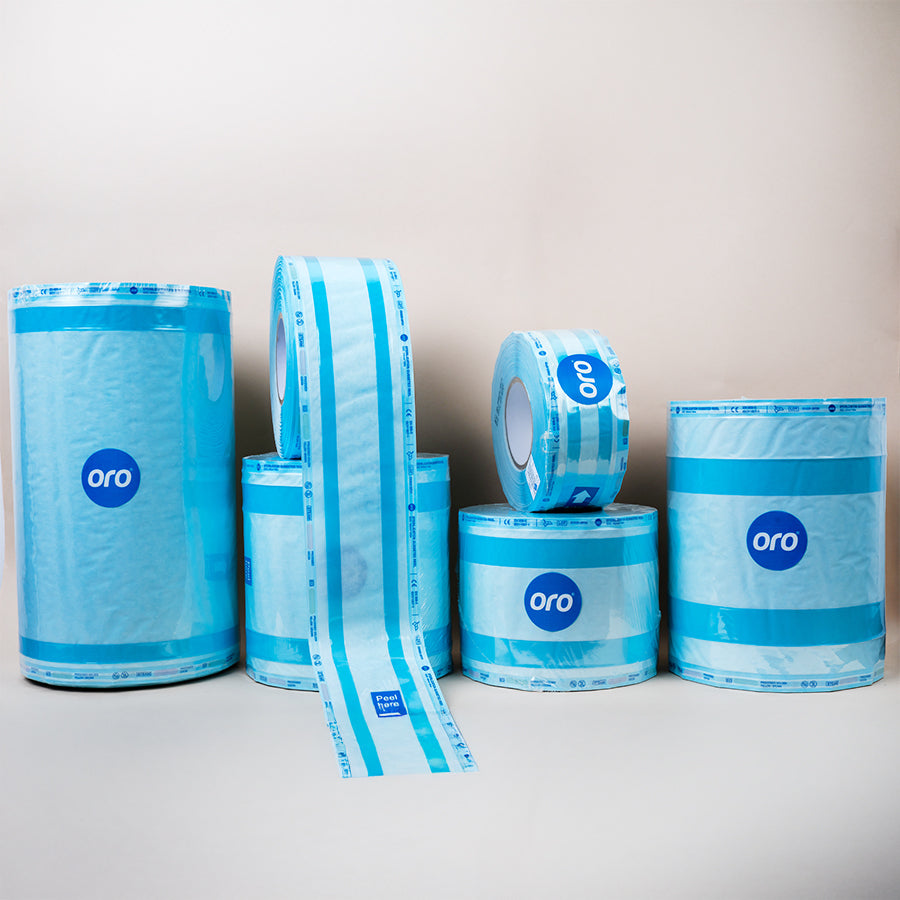

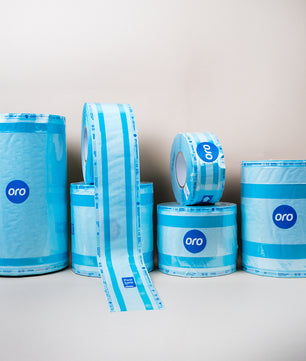

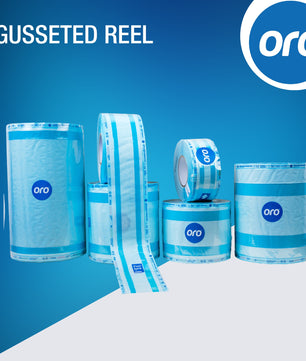

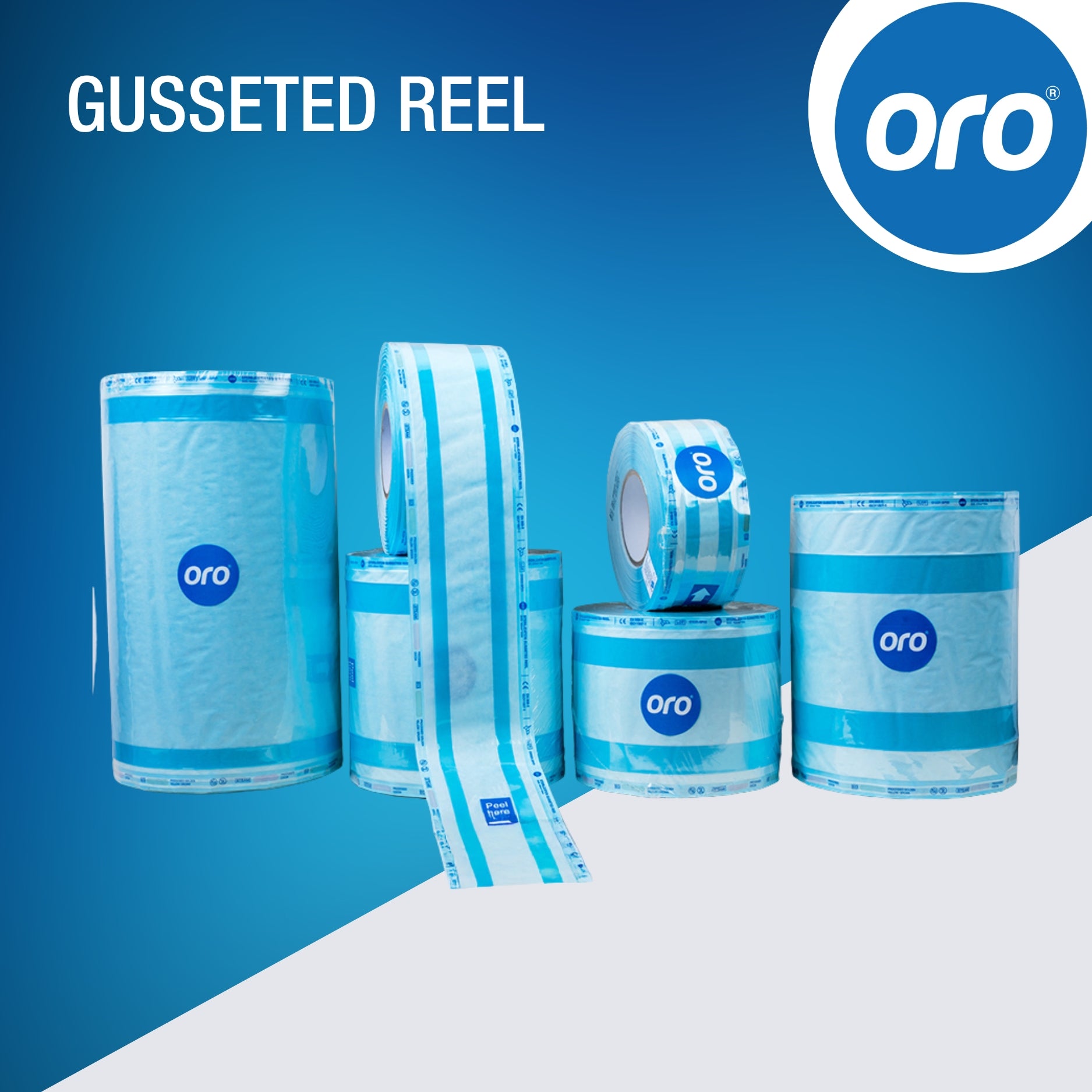

ORO Gusseted Sterilization Reels are specially designed to provide reliable and sterile packaging for larger and bulkier medical instruments.

Manufactured using virgin medical-grade imported paper combined with a reinforced transparent multi-layer PET/CPP film, these reels create a durable microbial barrier while allowing excellent sterilant penetration.

The gusseted side design offers additional internal space, making them ideal for instruments with greater height or volume. Triple-line sealing ensures safe, strong, and easy peel opening.

Designed to maintain sterility during storage, handling, and transportation, ORO gusseted reels are available in a wide range of standard sizes, with customized options available upon request.

KEY FEATURES ⌄

International Compliance
ISO 11607-1 and EN 868-5 compliant virgin medical-grade paper.
Gusseted Side Construction
Provides extra volume for bulky or heighted instruments.
Reinforced PET/CPP Film
Transparent multi-layer film acts as an effective microbial barrier.
Triple-Line Sealing
Strong seal with clean and easy peel performance.
Excellent Steam Permeability
Allows thorough and effective sterilization.
Instrument Safety
Suitable for bulky articles (sharp edges must be covered with Protector).
Wide Size Availability
Standard and custom sizes available on request.
Sterilization Compatibility
Compatible with ETO and STEAM sterilization.

Code	Product Name	Size	Packaging (Reels / Ctn)
RRMG50	Sterilization Reel Gusseted	50 mm × 100 m	10
RRMG55	Sterilization Reel Gusseted	55 mm × 100 m	10
RRMG75	Sterilization Reel Gusseted	75 mm × 100 m	8
RRMG100	Sterilization Reel Gusseted	100 mm × 100 m	6
RRMG125	Sterilization Reel Gusseted	125 mm × 100 m	8
RRMG150	Sterilization Reel Gusseted	150 mm × 100 m	4
RRMG200	Sterilization Reel Gusseted	200 mm × 100 m	4
RRMG250	Sterilization Reel Gusseted	250 mm × 100 m	4
RRMG300	Sterilization Reel Gusseted	300 mm × 100 m	2
RRMG350	Sterilization Reel Gusseted	350 mm × 100 m	2
RRMG400	Sterilization Reel Gusseted	400 mm × 100 m	2
RRMG450	Sterilization Reel Gusseted	450 mm × 100 m	2
RRMG500	Sterilization Reel Gusseted	500 mm × 100 m	2

Customized sizes available on request
